通信线路工程预算定额的补充定额

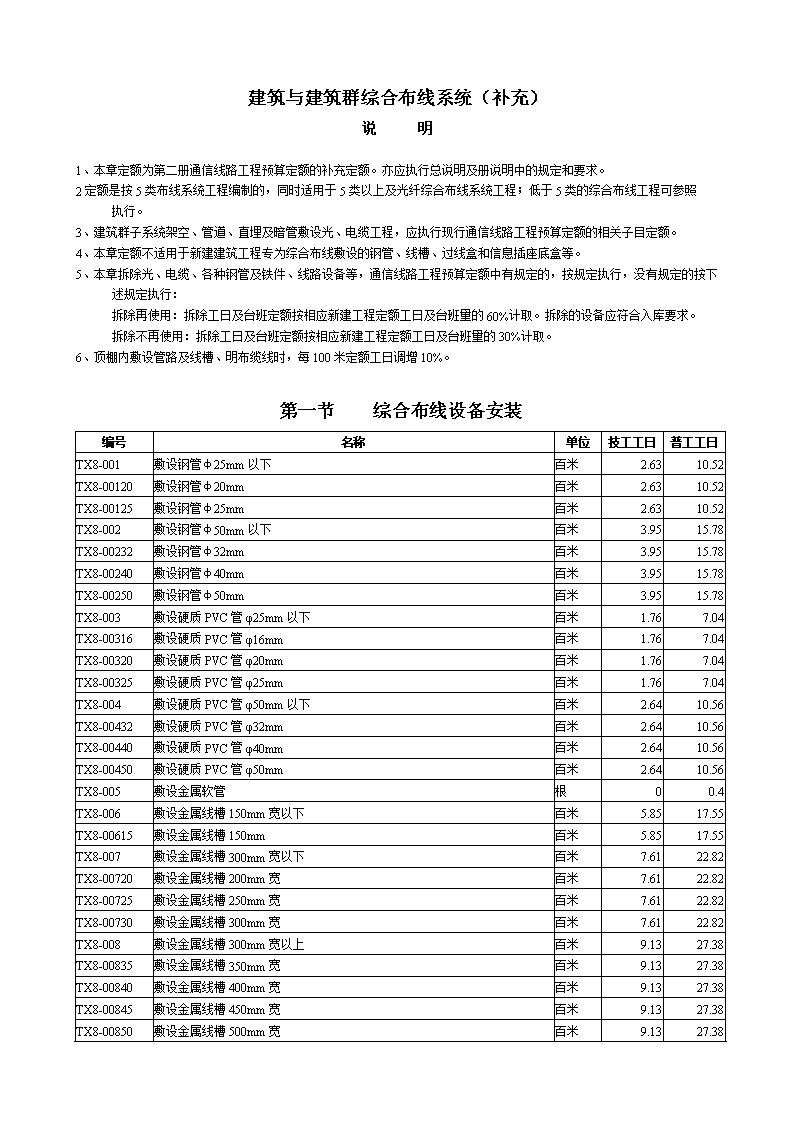

'建筑与建筑群综合布线系统（补充）说明1、本章定额为第二册通信线路工程预算定额的补充定额。亦应执行总说明及册说明中的规定和要求。2定额是按5类布线系统工程编制的，同时适用于5类以上及光纤综合布线系统工程；低于5类的综合布线工程可参照执行。3、建筑群子系统架空、管道、直埋及暗管敷设光、电缆工程，应执行现行通信线路工程预算定额的相关子目定额。4、本章定额不适用于新建建筑工程专为综合布线敷设的钢管、线槽、过线盒和信息插座底盒等。5、本章拆除光、电缆、各种钢管及铁件、线路设备等，通信线路工程预算定额中有规定的，按规定执行，没有规定的按下述规定执行：拆除再使用：拆除工日及台班定额按相应新建工程定额工日及台班量的60%计取。拆除的设备应符合入库要求。拆除不再使用：拆除工日及台班定额按相应新建工程定额工日及台班量的30%计取。6、顶棚内敷设管路及线槽、明布缆线时，每100米定额工日调增10%。第一节综合布线设备安装编号名称单位技工工日普工工日TX8-001敷设钢管φ25mm以下百米2.6310.52TX8-00120敷设钢管φ20mm百米2.6310.52TX8-00125敷设钢管φ25mm百米2.6310.52TX8-002敷设钢管φ50mm以下百米3.9515.78TX8-00232敷设钢管φ32mm百米3.9515.78TX8-00240敷设钢管φ40mm百米3.9515.78TX8-00250敷设钢管φ50mm百米3.9515.78TX8-003敷设硬质PVC管φ25mm以下百米1.767.04TX8-00316敷设硬质PVC管φ16mm百米1.767.04TX8-00320敷设硬质PVC管φ20mm百米1.767.04TX8-00325敷设硬质PVC管φ25mm百米1.767.04TX8-004敷设硬质PVC管φ50mm以下百米2.6410.56TX8-00432敷设硬质PVC管φ32mm百米2.6410.56TX8-00440敷设硬质PVC管φ40mm百米2.6410.56TX8-00450敷设硬质PVC管φ50mm百米2.6410.56TX8-005敷设金属软管根00.4TX8-006敷设金属线槽150mm宽以下百米5.8517.55TX8-00615敷设金属线槽150mm百米5.8517.55TX8-007敷设金属线槽300mm宽以下百米7.6122.82TX8-00720敷设金属线槽200mm宽百米7.6122.82TX8-00725敷设金属线槽250mm宽百米7.6122.82TX8-00730敷设金属线槽300mm宽百米7.6122.82TX8-008敷设金属线槽300mm宽以上百米9.1327.38TX8-00835敷设金属线槽350mm宽百米9.1327.38TX8-00840敷设金属线槽400mm宽百米9.1327.38TX8-00845敷设金属线槽450mm宽百米9.1327.38TX8-00850敷设金属线槽500mm宽百米9.1327.38 TX8-00855敷设金属线槽550mm宽百米9.1327.38TX8-00860敷设金属线槽600mm宽百米9.1327.38TX8-009敷设塑料线槽100mm宽以下百米3.5110.53TX8-00904敷设塑料线槽45mm宽百米3.5110.53TX8-00910敷设塑料线槽100mm宽百米3.5110.53TX8-010敷设塑料线槽100mm宽以上百米4.2112.64TX8-01015敷设塑料线槽150mm宽百米4.2112.64TX8-01020敷设塑料线槽200mm宽百米4.2112.64TX8-011安装过线(路)盒(半周长)200mm以下10个00.4TX8-011AA安装金属过线(路)盒(半周长)200mm10个00.4TX8-011BA安装塑质过线(路)盒(半周长)100mm10个00.4TX8-011BB安装塑质过线(路)盒(半周长)150mm10个00.4TX8-011BC安装塑质过线(路)盒(半周长)200mm10个00.4TX8-012安装过线(路)盒(半周长)200mm以上10个0.90.4TX8-012AA安装金属过线(路)盒(半周长)250mm10个0.90.4TX8-012AB安装金属过线(路)盒(半周长)300mm10个0.90.4TX8-012AC安装金属过线(路)盒(半周长)350mm10个0.90.4TX8-012AD安装金属过线(路)盒(半周长)400mm10个0.90.4TX8-012AE安装金属过线(路)盒(半周长)450mm10个0.90.4TX8-012AF安装金属过线(路)盒(半周长)500mm10个0.90.4TX8-012AG安装金属过线(路)盒(半周长)550mm10个0.90.4TX8-012AH安装金属过线(路)盒(半周长)600mm10个0.90.4TX8-012AI安装金属过线(路)盒(半周长)650mm10个0.90.4TX8-012BA安装塑质过线(路)盒(半周长)250mm10个0.90.4TX8-013安装信息插座底盒(接线盒)(明装)10个00.4TX8-013AA安装钢质信息插座底盒(接线盒)(明装)10个00.4TX8-013BA安装塑钢信息插座底盒(接线盒)(明装)10个00.4TX8-013DA安装塑质信息插座底盒(接线盒)(明装)10个00.4TX8-014安装信息插座底盒(接线盒)(砖墙内)10个00.98TX8-014AA安装钢质信息插座底盒(接线盒)(砖墙内)10个00.98TX8-014BA安装塑钢信息插座底盒(接线盒)(砖墙内)10个00.98TX8-014DA安装塑质信息插座底盒(接线盒)(砖墙内)10个00.98TX8-015安装信息插座底盒(接线盒)(混凝土墙内)10个01.37TX8-015AA安装钢质信息插座底盒(接线盒)(混凝土墙内)10个01.37TX8-015BA安装塑钢信息插座底盒(接线盒)(混凝土墙内)10个01.37TX8-015DA安装塑质信息插座底盒(接线盒)(混凝土墙内)10个01.37TX8-016安装信息插座底盒(接线盒)(木地板内)10个00.84TX8-016AA安装钢质信息插座底盒(接线盒)(木地板内)10个00.84TX8-016BA安装塑钢信息插座底盒(接线盒)(木地板内)10个00.84TX8-016DA安装塑质信息插座底盒(接线盒)(木地板内)10个00.84TX8-017安装信息插座底盒(接线盒)(防静电钢质地板内)10个01.68TX8-017AA安装钢质信息插座底盒(接线盒)(防静电钢质地板内)10个01.68TX8-017BA安装塑钢信息插座底盒(接线盒)(防静电钢质地板内)10个01.68TX8-017DA安装塑质信息插座底盒(接线盒)(防静电钢质地板内)10个01.68 TX8-018安装吊装式桥架100mm宽以下10m0.373.33TX8-018AA安装吊装式梯形式桥架100mm宽10m0.373.33TX8-018BA安装吊装式托盘式桥架100mm宽10m0.373.33TX8-018DA安装吊装式槽式桥架100mm宽10m0.373.33TX8-019安装吊装式桥架300mm宽以下10m0.413.66TX8-019AB安装吊装式梯形式桥架150mm宽10m0.413.66TX8-019AC安装吊装式梯形式桥架200mm宽10m0.413.66TX8-019AD安装吊装式梯形式桥架250mm宽10m0.413.66TX8-019AE安装吊装式梯形式桥架300mm宽10m0.413.66TX8-019BB安装吊装式托盘式桥架150mm宽10m0.413.66TX8-019BC安装吊装式托盘式桥架200mm宽10m0.413.66TX8-019BD安装吊装式托盘式桥架250mm宽10m0.413.66TX8-019BE安装吊装式托盘式桥架300mm宽10m0.413.66TX8-019DB安装吊装式槽式桥架150mm宽10m0.413.66TX8-019DC安装吊装式槽式桥架200mm宽10m0.413.66TX8-019DD安装吊装式槽式桥架250mm宽10m0.413.66TX8-019DE安装吊装式槽式桥架300mm宽10m0.413.66TX8-020安装吊装式桥架300mm宽以上10m0.413.66TX8-020AF安装吊装式梯形式桥架350mm宽10m0.413.66TX8-020AG安装吊装式梯形式桥架400mm宽10m0.413.66TX8-020AH安装吊装式梯形式桥架450mm宽10m0.413.66TX8-020AI安装吊装式梯形式桥架500mm宽10m0.413.66TX8-020AJ安装吊装式梯形式桥架550mm宽10m0.413.66TX8-020AK安装吊装式梯形式桥架600mm宽10m0.413.66TX8-020BF安装吊装式托盘式桥架350mm宽10m0.413.66TX8-020BG安装吊装式托盘式桥架400mm宽10m0.413.66TX8-020BH安装吊装式托盘式桥架450mm宽10m0.413.66TX8-020BI安装吊装式托盘式桥架500mm宽10m0.413.66TX8-020BJ安装吊装式托盘式桥架550mm宽10m0.413.66TX8-020BK安装吊装式托盘式桥架600mm宽10m0.413.66TX8-020DF安装吊装式槽式桥架350mm宽10m0.413.66TX8-020DG安装吊装式槽式桥架400mm宽10m0.413.66TX8-020DH安装吊装式槽式桥架450mm宽10m0.413.66TX8-020DI安装吊装式槽式桥架500mm宽10m0.413.66TX8-020DJ安装吊装式槽式桥架550mm宽10m0.413.66TX8-020DK安装吊装式槽式桥架600mm宽10m0.413.66TX8-021安装支撑式桥架100mm宽以下10m0.282.52TX8-021AA安装支撑式梯形式桥架100mm宽10m0.282.52TX8-021BA安+A6098装支撑式托盘式桥架100mm宽10m0.282.52TX8-021DA安装支撑式槽式桥架100mm宽10m0.282.52TX8-022安装支撑式桥架300mm宽以下10m0.312.77TX8-022AB安装支撑式梯形式桥架150mm宽10m0.312.77TX8-022AC安装支撑式梯形式桥架200mm宽10m0.312.77TX8-022AD安装支撑式梯形式桥架250mm宽10m0.312.77 TX8-022AE安装支撑式梯形式桥架300mm宽10m0.312.77TX8-022BB安装支撑式托盘式桥架150mm宽10m0.312.77TX8-022BC安装支撑式托盘式桥架200mm宽10m0.312.77TX8-022BD安装支撑式托盘式桥架250mm宽10m0.312.77TX8-022BE安装支撑式托盘式桥架300mm宽10m0.312.77TX8-022DB安装支撑式槽式桥架150mm宽10m0.312.77TX8-022DC安装支撑式槽式桥架200mm宽10m0.312.77TX8-022DD安装支撑式槽式桥架250mm宽10m0.312.77TX8-022DE安装支撑式槽式桥架300mm宽10m0.312.77TX8-023安装支撑式桥架300mm宽以上10m0.343.05TX8-023AF安装支撑式梯形式桥架350mm宽10m0.343.05TX8-023AG安装支撑式梯形式桥架400mm宽10m0.343.05TX8-023AH安装支撑式梯形式桥架450mm宽10m0.343.05TX8-023AI安装支撑式梯形式桥架500mm宽10m0.343.05TX8-023AJ安装支撑式梯形式桥架550mm宽10m0.343.05TX8-023AK安装支撑式梯形式桥架600mm宽10m0.343.05TX8-023BF安装支撑式托盘式桥架350mm宽10m0.343.05TX8-023BG安装支撑式托盘式桥架400mm宽10m0.343.05TX8-023BH安装支撑式托盘式桥架450mm宽10m0.343.05TX8-023BI安装支撑式托盘式桥架500mm宽10m0.343.05TX8-023BJ安装支撑式托盘式桥架550mm宽10m0.343.05TX8-023BK安装支撑式托盘式桥架600mm宽10m0.343.05TX8-023DF安装支撑式槽式桥架350mm宽10m0.343.05TX8-023DG安装支撑式槽式桥架400mm宽10m0.343.05TX8-023DH安装支撑式槽式桥架450mm宽10m0.343.05TX8-023DI安装支撑式槽式桥架500mm宽10m0.343.05TX8-023DJ安装支撑式槽式桥架550mm宽10m0.343.05TX8-023DK安装支撑式槽式桥架600mm宽10m0.343.05TX8-024垂直安装桥架100mm宽以下10m0.171.36TX8-024AA垂直安装梯形式桥架100mm宽10m0.171.36TX8-024BA垂直安装托盘式桥架100mm宽10m0.171.36TX8-024DA垂直安装槽式桥架100mm宽10m0.171.36TX8-025垂直安装桥架300mm宽以下10m0.221.77TX8-025AB垂直安装梯形式桥架150mm宽10m0.221.77TX8-025AC垂直安装梯形式桥架200mm宽10m0.221.77TX8-025AD垂直安装梯形式桥架250mm宽10m0.221.77TX8-025AE垂直安装梯形式桥架300mm宽10m0.221.77TX8-025BB垂直安装托盘式桥架150mm宽10m0.221.77TX8-025BC垂直安装托盘式桥架200mm宽10m0.221.77TX8-025BD垂直安装托盘式桥架250mm宽10m0.221.77TX8-025BE垂直安装托盘式桥架300mm宽10m0.221.77TX8-025DB垂直安装槽式桥架150mm宽10m0.221.77TX8-025DC垂直安装槽式桥架200mm宽10m0.221.77TX8-025DD垂直安装槽式桥架250mm宽10m0.221.77 TX8-025DE垂直安装槽式桥架300mm宽10m0.221.77TX8-026垂直安装桥架300mm宽以上10m0.292.3TX8-026AF垂直安装梯形式桥架350mm宽10m0.292.3TX8-026AG垂直安装梯形式桥架400mm宽10m0.292.3TX8-026AH垂直安装梯形式桥架450mm宽10m0.292.3TX8-026AI垂直安装梯形式桥架500mm宽10m0.292.3TX8-026AJ垂直安装梯形式桥架550mm宽10m0.292.3TX8-026AK垂直安装梯形式桥架600mm宽10m0.292.3TX8-026BF垂直安装托盘式桥架350mm宽10m0.292.3TX8-026BG垂直安装托盘式桥架400mm宽10m0.292.3TX8-026BH垂直安装托盘式桥架450mm宽10m0.292.3TX8-026BI垂直安装托盘式桥架500mm宽10m0.292.3TX8-026BJ垂直安装托盘式桥架550mm宽10m0.292.3TX8-026BK垂直安装托盘式桥架600mm宽10m0.292.3TX8-026DF垂直安装槽式桥架350mm宽10m0.292.3TX8-026DG垂直安装槽式桥架400mm宽10m0.292.3TX8-026DH垂直安装槽式桥架450mm宽10m0.292.3TX8-026DI垂直安装槽式桥架500mm宽10m0.292.3TX8-026DJ垂直安装槽式桥架550mm宽10m0.292.3TX8-026DK垂直安装槽式桥架600mm宽10m0.292.3TX8-027开槽(砖槽)米00.07TX8-028开槽(混凝土槽)米00.28TX8-029安装机柜、机架(落地式)架20.67TX8-029AA安装机柜2.0米(落地式)架20.67TX8-029AB安装机柜2.6米(落地式)架20.67TX8-029BA安装机架2.0米(落地式)架20.67TX8-029BB安装机架2.6米(落地式)架20.67TX8-029FA安装总跳线架（100对）架20.67TX8-029FB安装总跳线架（300对）架20.67TX8-030安装机柜、机架(墙挂式)架31TX8-030AA安装机柜2.0米(墙挂式)架31TX8-030AB安装机柜2.6米(墙挂式)架31TX8-030BA安装机架2.0米(墙挂式)架31TX8-030BB安装机架2.6米(墙挂式)架31TX8-031安装接线箱个2.70.9TX8-032制作安装抗震底座个1.670.83　　　　　第二节布放缆线编号名称单位技工工日普工工日TX8-033管、暗槽内穿放4对对绞电缆百米条0.850.85TX8-033AA管、暗槽内穿放4对非屏蔽对绞电缆百米条0.850.85TX8-033BA管、暗槽内穿放4对屏蔽对绞电缆百米条0.850.85TX8-034管、暗槽内穿放大对数对绞电缆(非屏+B6056蔽50对以下)百米条1.21.2 TX8-03425管、暗槽内穿放非屏蔽25对对绞电缆百米条1.21.2TX8-03450管、暗槽内穿放非屏蔽50对对绞电缆百米条1.21.2TX8-035管、暗槽内穿放大对数对绞电缆(非屏蔽100对以下)百米条1.681.68TX8-035A0管、暗槽内穿放非屏蔽100对对绞电缆百米条1.681.68TX8-036管、暗槽内穿放大对数对绞电缆(屏蔽50对以下)百米条1.321.32TX8-03625管、暗槽内穿放屏蔽25对对绞电缆百米条1.321.32TX8-03650管、暗槽内穿放屏蔽50对对绞电缆百米条1.321.32TX8-037管、暗槽内穿放大对数对绞电缆(屏蔽100对以下)百米条1.851.85TX8-037A0管、暗槽内穿放屏蔽100对对绞电缆百米条1.851.85TX8-038桥架、线槽、网络地板内明布4对对绞电缆百米条0.510.51TX8-038AA桥架、线槽、网络地板内明布4对非屏蔽对绞电缆百米条0.510.51TX8-038BA桥架、线槽、网络地板内明布4对屏蔽对绞电缆百米条0.510.51TX8-039桥架、线槽、网络地板内明布大对数对绞电缆（50对以下）百米条0.960.96TX8-039AA桥架、线槽、网络地板内明布非屏蔽25对对绞电缆百米条0.960.96TX8-039AB桥架、线槽、网络地板内明布非屏蔽50对对绞电缆百米条0.960.96TX8-039BA桥架、线槽、网络地板内明布屏蔽25对对绞电缆百米条0.960.96TX8-039BB桥架、线槽、网络地板内明布屏蔽50对对绞电缆百米条0.960.96TX8-040桥架、线槽、网络地板内明布大对数对绞电缆（100对以下）百米条1.351.35TX8-040AA桥架、线槽、网络地板内明布非屏蔽100对对绞电缆百米条1.351.35TX8-040BA桥架、线槽、网络地板内明布屏蔽100对对绞电缆百米条1.351.35TX8-041管、暗槽内穿放光缆百米条1.361.36TX8-04104管、暗槽内穿放4芯光缆百米条1.361.36TX8-04106管、暗槽内穿放6芯光缆百米条1.361.36TX8-04108管、暗槽内穿放8芯光缆百米条1.361.36TX8-04110管、暗槽内穿放10芯光缆百米条1.361.36TX8-04112管、暗槽内穿放12芯光缆百米条1.361.36TX8-04124管、暗槽内穿放24芯光缆百米条1.361.36TX8-04136管、暗槽内穿放36芯光缆百米条1.361.36TX8-04148管、暗槽内穿放48芯光缆百米条1.361.36TX8-042桥架、线槽、网络地板内明布光缆百米条0.90.9TX8-04204桥架、线槽、网络地板内明布4芯光缆百米条0.90.9TX8-04206桥架、线槽、网络地板内明布6芯光缆百米条0.90.9TX8-04208桥架、线槽、网络地板内明布8芯光缆百米条0.90.9TX8-04210桥架、线槽、网络地板内明布10芯光缆百米条0.90.9TX8-04212桥架、线槽、网络地板内明布12芯光缆百米条0.90.9TX8-04224桥架、线槽、网络地板内明布24芯光缆百米条0.90.9TX8-04236桥架、线槽、网络地板内明布36芯光缆百米条0.90.9TX8-04248桥架、线槽、网络地板内明布48芯光缆百米条0.90.9TX8-043布放光缆护套百米条0.90.9TX8-044气流法布放光纤束百米条0.890.13　　　　　第三节缆线终接编号名称单位技工工日普工工日 TX8-045卡接4对对绞电缆（配线架侧）（非屏蔽）条0.060TX8-046卡接4对对绞电缆（配线架侧）（屏蔽）条0.080TX8-047卡接大对数对绞电缆（配线架侧）（非屏蔽）百对1.130TX8-048卡接大对数对绞电缆（配线架侧）（屏蔽）百对1.50TX8-049安装8位模块式信息插座（单口）（非屏蔽）10个0.450.07TX8-050安装8位模块式信息插座（单口）（屏蔽）10个0.550.07TX8-051安装8位模块式信息插座（双口）（非屏蔽）10个0.750.07TX8-051AA安装8位模块式信息插座（四口）（非屏蔽）10个1.20.11TX8-052安装8位模块式信息插座（双口）（屏蔽）10个0.950.07TX8-052AA安装8位模块式信息插座（四口）（屏蔽）10个1.520.11TX8-053安装光纤信息插座（双口）10个0.30TX8-054安装光纤信息插座（四口）10个0.40TX8-055安装光纤连接盘块0.650TX8-056光纤连接(机械法)(单模)芯0.430TX8-057光纤连接(机械法)(多模)芯0.340TX8-058光纤连接(熔接法)(单模)芯0.50TX8-059光纤连接(熔接法)(多模)芯0.40TX8-060光纤连接(磨制法)(单模)端口0.50TX8-061光纤连接(磨制法)(多模)端口0.450TX8-062对绞电缆跳线条0.080TX8-062AA非屏蔽对绞电缆跳线条0.080TX8-062BA屏蔽对绞电缆跳线条0.080TX8-062FA布放跳线架跳线条0.080TX8-062FB布放配线架跳线条0.080TX8-063光纤跳线(单模)条0.950TX8-64光纤跳线(多模)条0.810　　　　　第四节综合布线系统测试编号名称单位技工工日普工工日TX8-065对绞电缆链路测试链路0.10TX8-066光纤链路测试(单光纤)链路0.10TX8-067光纤链路测试(双光纤)链路0.10TX8-068安装双绞线水平过线架(环)个0.50TX8-069安装双绞线垂直走线架(环)个0.50TX8-070编绑双绞线电缆百米条1.90　　　　　'
